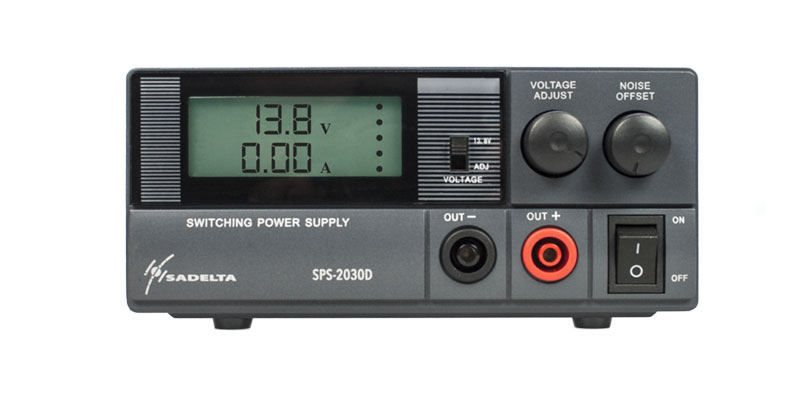

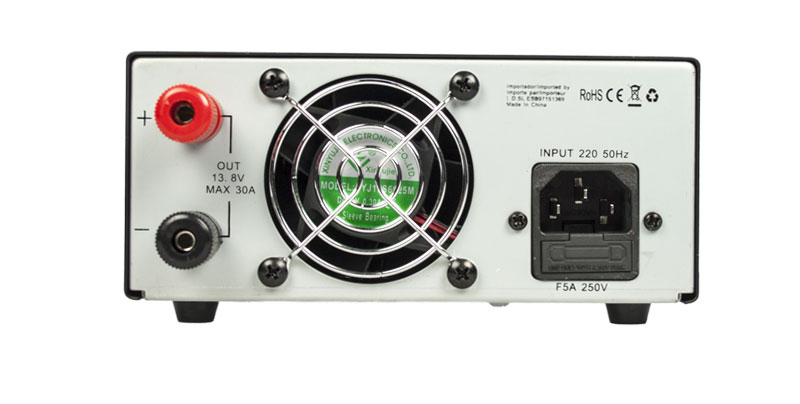

SPS 2030D
These regulated power supplies stand out by the following features: high efficiency, reduced dimensions, light weight and a high reliability. One of its main features is the innovative ripple filter system, which reduces the noise on the continuous tension signal to extremely low levels.
❮
❯
| SPS 2030D | |
|---|---|
| Input voltage | 220V AC 50-60Hz |
| Output voltage | 9-15V DC Adjustable (13,8V fix) |
| Protection | Overvoltage, short-circuit, current-limiting |
| Output current | 20A cont. / 30A max peak. |
| Fuse | 5A |
| Measuring instruments | Digital display with voltmeter and amperemeter |
| Dimensions (x,y,z) | 155 x 70 x 205 mm |
| Wight | 1,5Kg |
